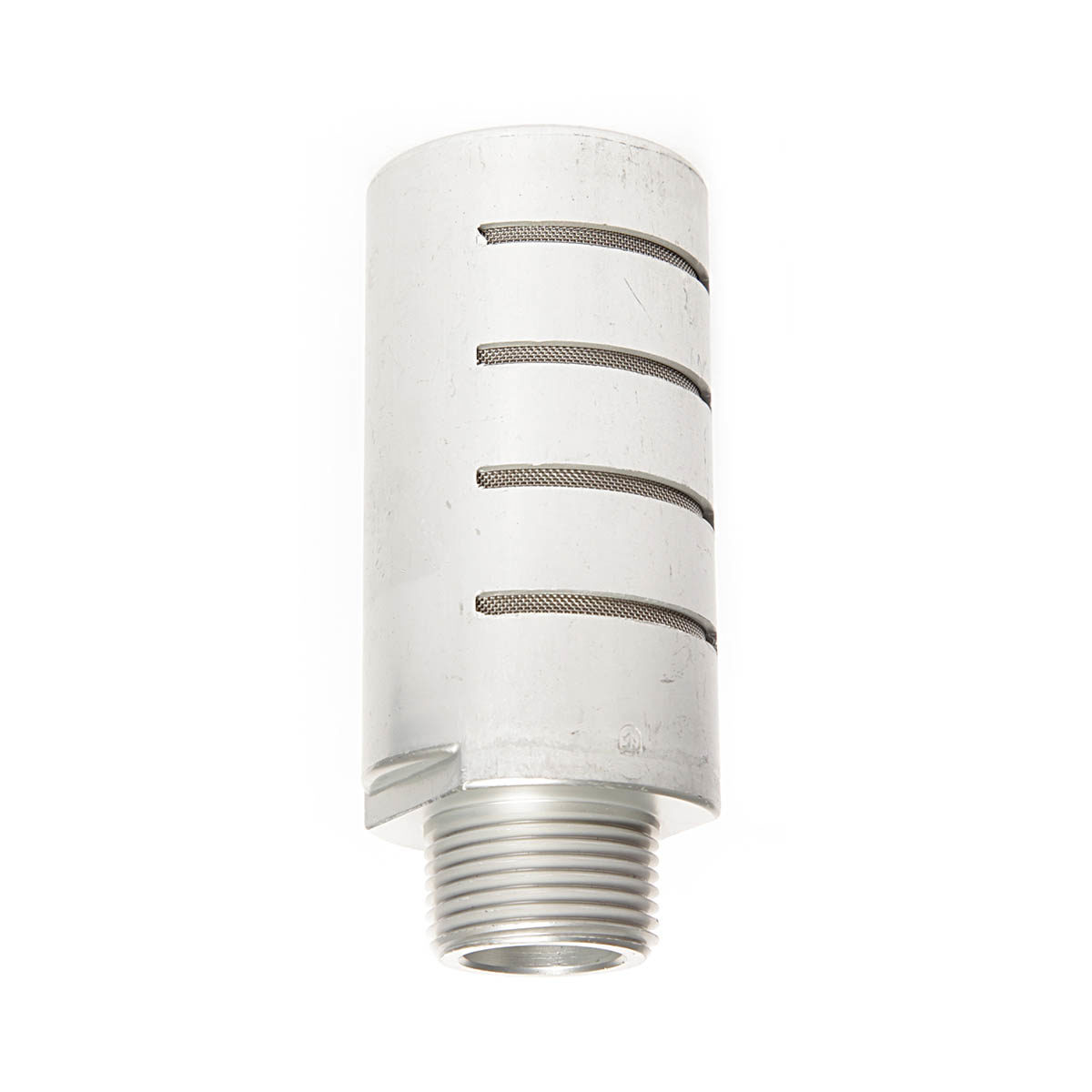

MHM-Series high flow mufflers feature a 50 mesh self cleaning stainless steel screen which are combined with a corrosion-resistant aluminum shell to create a highly efficient ultra quiet muffler designed with minimal back pressure.
When installed on the exhaust ports of pneumatic valves or manifolds the aluminum body muffler provides a quick and inexpensive way to reduce work area noise while preventing contamination from entering into the inside of the pneumatic valves.
Unit should be mounted in a protective position free from excessive vibration.
- Maximum operating pressure 300 psi
- Operating temperatures 35°F to 160°F
- 50 mesh
| Model | Size | Arrow | Norgren |
| MHM-1 | 1/8” | ASQF-1M | B001A |
| MHM-2 | 1/4” | ASQF-2M | B002A |
| MHM-3 | 3/8” | ASQF-3M | B003A |
| MHM-4 | 1/2” | ASQF-4M | B004A |
| MHM-6 | 3/4” | ASQF-6M | B006A |
| MHM-8 | 1” | ASQF-8M | B008A |
