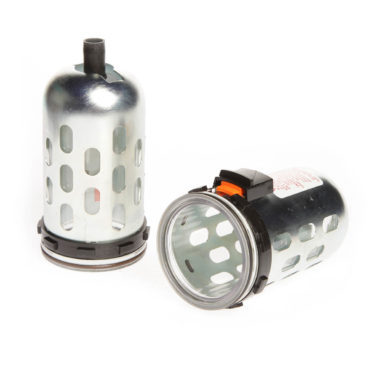

Bowl and Guard Replacements (Wilkerson)
Bowl and Guard Replacements (Wilkerson)
Back to products
Hydraulic Inline Filter Elements (PIF-1FM - 6FM)
Hydraulic Inline Filter Elements (PIF-1FM - 6FM)

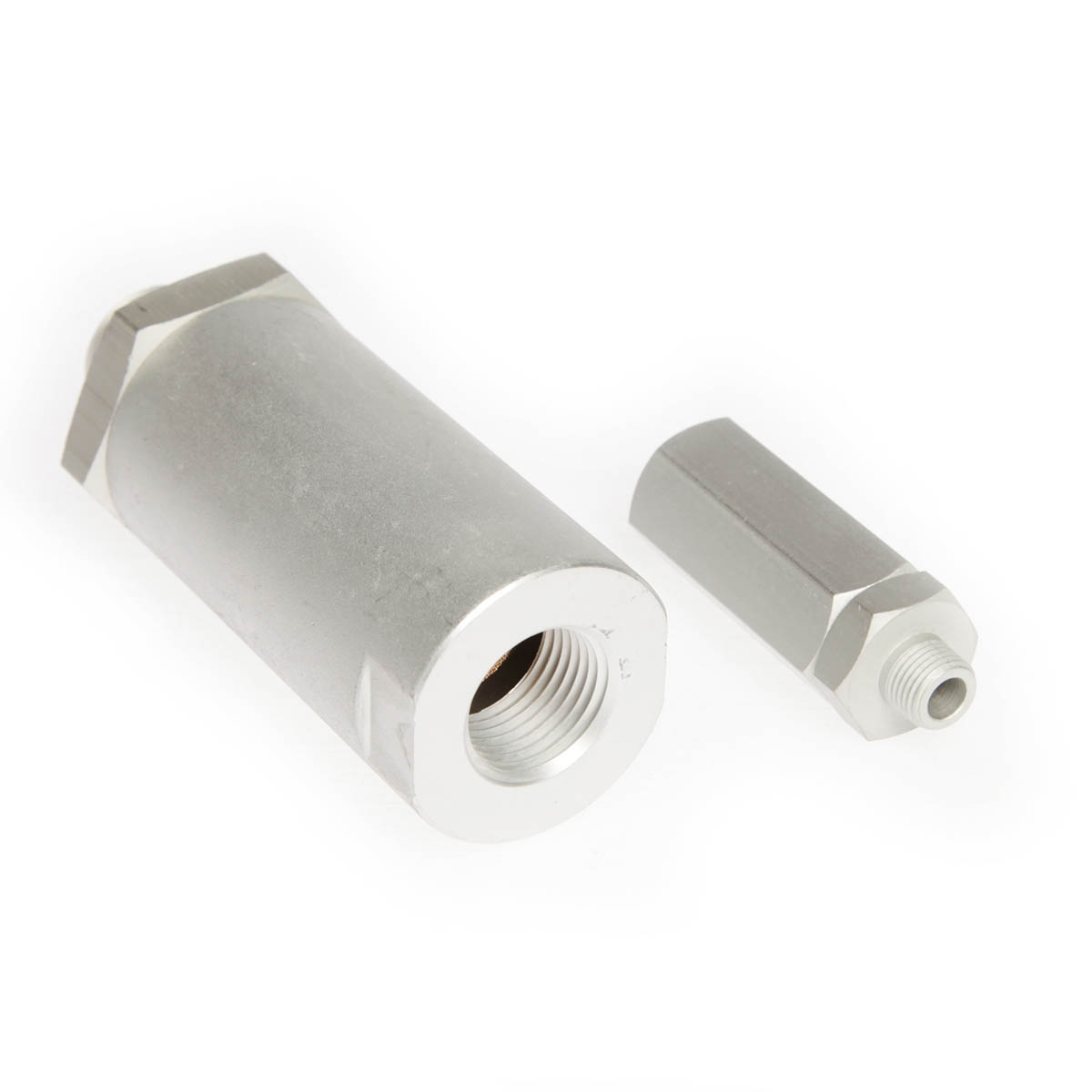

Inline Filter Male – Female

Please see below for product description and specs.
Categories: ,
Description

Aluminum inline filter weighs only 2 ounces.

  • Either port can be used as inlet port
  • Throwaway filter element
  • 40 micron element
  • 300 psi maximum
  • 35º F to 200º F
Model Size
 PIF-1FM  1/8”
 PIF-2FM  1/4”
 PIF-3FM  3/8”
 PIF-4FM  1/2”
 PIF-6FM  3/4”
Element For unit
EK9072 PIF-1 to PIF-3
EK9074 PIF-4 to PIF-6
Additional information
Model

PIF-1FM

,

PIF-2FM

,

PIF-3FM

,

PIF-4FM

,

PIF-6FM

Related products

Hydraulic Inline Filter Elements (HIF-2 – HIF-6)

Element Unit EK9052-25 HIF-2 or HIF-3 EK9052-40 HIF-2 or HIF-3 EK9052V-10 (viton) HIF-2 or HIF-3 EK9054 HIF-4 or HIF-6

Hydraulic Inline Filter Elements (PIF-1FM – 6FM)

300 psi maximum 35º F to 200º F Element For unit EK9072 PIF-1 to PIF-3 EK9074 PIF-4 to PIF-6

Hydraulic Inline Filters – HIF

Straight Thru Anodized Aluminum 25 Micron 3000 psi maximum Temp (-40° F to 200° F) Model Size O.L. Dia. HIF-2

Inline Lubricator

Oil right at air tool with capacity for 8 hour shift (lubricator cannot be filled under pressure). Model Inlet Outlet

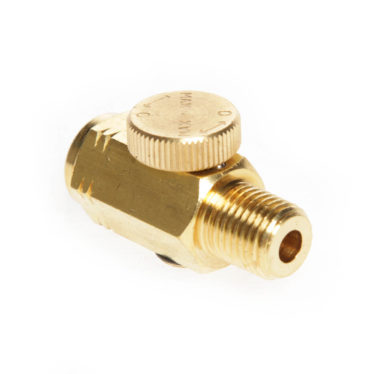

Inline Regulator
