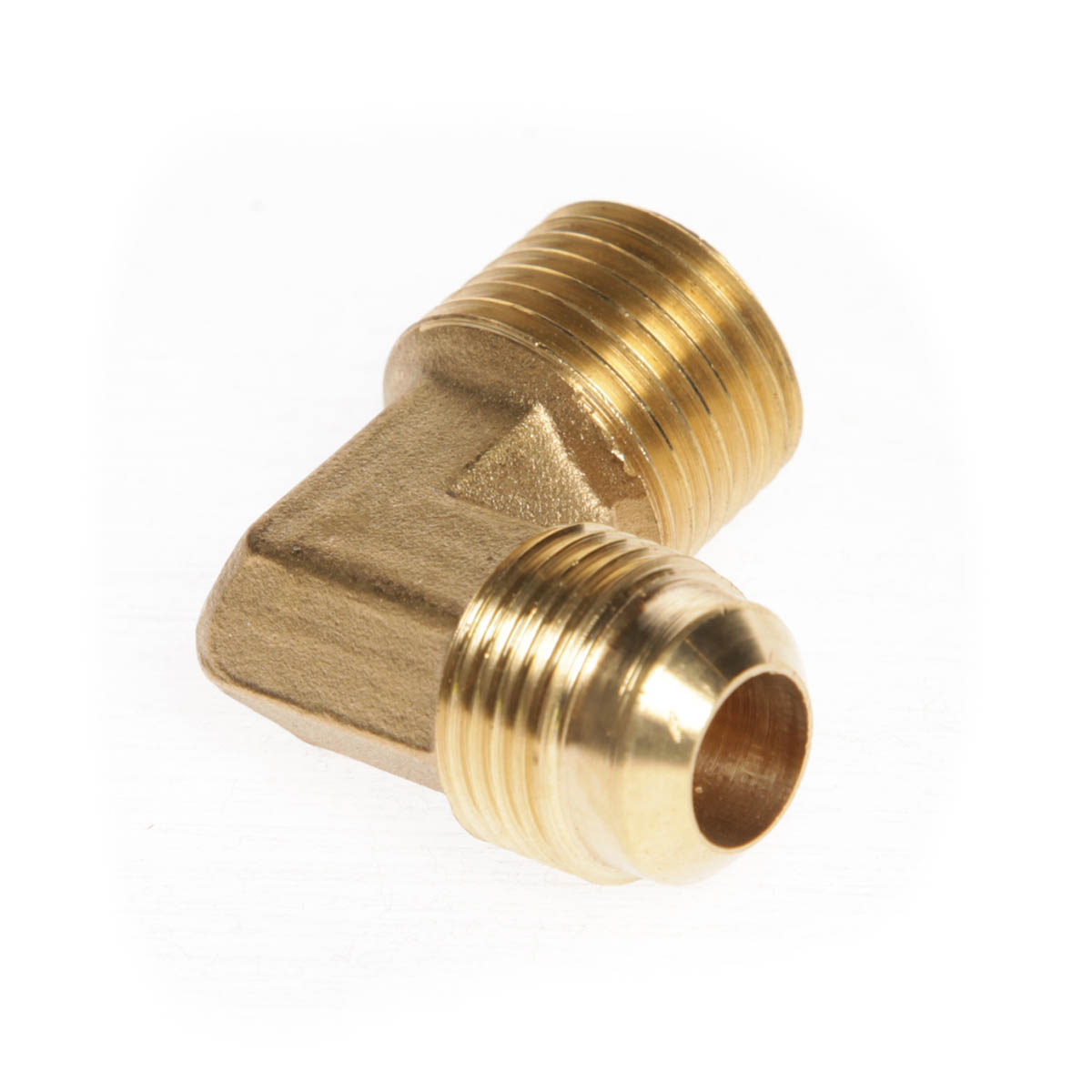

Flare Elbow 90° – Tube to Male Pipe

Please see below for product description and specs.
Category: Tags: , , ,
Description
Model Tube Pipe
49-4B 1/4” 1/4”
49-6B 3/8” 1/4”
49-6C 3/8” 3/8”
Additional information
Model

49-4B

,

49-6B

,

49-6C

,

49-8C

,

49-8D
