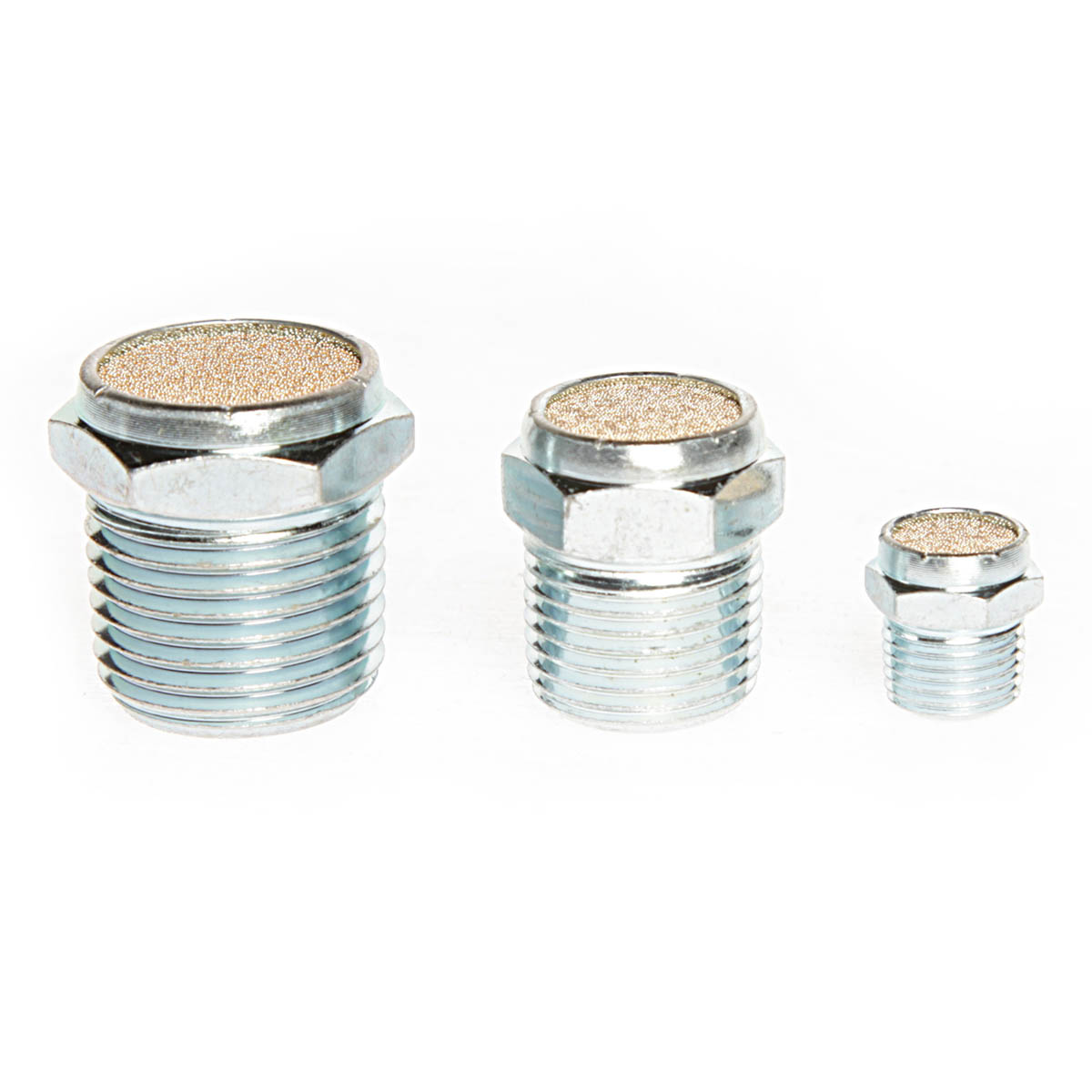

Breather Vents
Please see below for product description and specs.
Description
- Maximum operating pressure 150 psi
- Operating temperatures 35˚F to 300˚F
- 40 micron
| Model | Size | |
| BV-1 | F18 | 1/8” |
| BV-2 | F28 | 1/4” |
| BV-3 | F38 | 3/8” |
| BV-4 | F48 | 1/2” |
| BV-6 | F68 | 3/4” |
| BV-8 | F88 | 1” |
| BV-10 | F108 | 1 1/4” |
| BV-12 | F128 | 1 1/2” |
Manufacturer Crossover
| RFP | ARO | Arrow | Norgren | Numatics | PH |
| BV-1 | 20311-1 | ASP01 BV | MV001A | B1MN | 04702-0002 |
| BV-2 | 20311-2 | ASP02 BV | MV002A | B2MN | 04704-0004 |
| BV-3 | 20311-3 | ASP03 BV | MV003A | B3MN | 04706-0006 |
| BV-4 | 20311-4 | ASP04 BV | MV004A | B4MN | 04708-0008 |
| BV-6 | 20311-6 | ASP06 BV | MV006A | B5MN | 04712-0012 |
| BV-8 | 20311-8 | ASP08 BV | MV008A | B6MN | 04716-0016 |
Additional information
| Size |
1/8” ,1/4” ,3/8” ,1/2” ,3/4” ,1” ,1 1/4” ,1 1/2” |
|---|
