Investment Cast Reduce Bore 800 psi Body – CF8M Ball/Stem 316 SS Seats PTFE Model Size SS1FF-2 1/4” SS1FF-3 3/8”

Full Bore 1000 psi Body – CF8M 316SS Ball/Stem 316 SS Seats PTFE Model Size Port Dia. SS2FF-2 1/4” 11.2

29” HG-400 psi 150 PSIG saturated steam Chrome plated ball Blow-out proof stem c/w adjustable packing RTFE seats and seals

2000 psi 150 psi saturated steam Chrome plated ball Blow-out proof stem c/w adj. packing RTFE seats & seals Temp.

600 psi Max. temp. 400° F Chrome plated ball Blow-out proof c/w adjustable packing Model Size Port Dia. BG-2 1/4”

For all types of Hydraulic Fluid Block Body – Zinc Clear Coating Full Port Delrin ball seats Viton stem seals

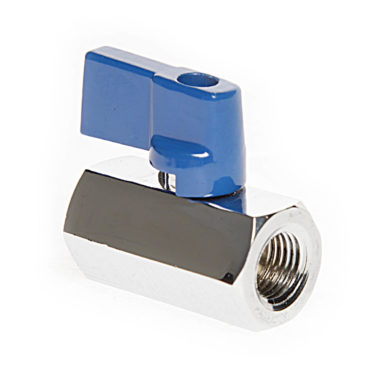

450 psi Chrome plated brass body Temp – 4°F to 200°F Model Size 334-1 1/8” 334-2 1/4” 334-3 3/8” 334-4

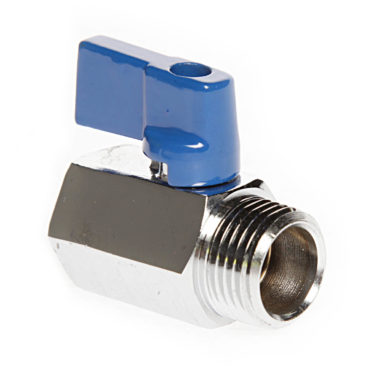

450 psi Chrome plated brass body Temp – 4°F to 200°F Model Size 335-1 1/8” 335-2 1/4” 335-3 3/8” 335-4

316 Stainless Steel – CF8M Seats – PTFE 800 psi Temp -4°F to 200°F Model Size 334SS-2 1/4”

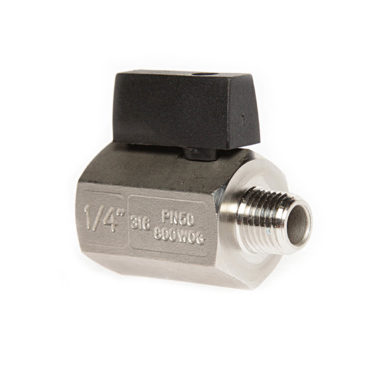

316 Stainless Steel – CF8M Seats – PTFE 800 psi Temp -4°F to 200°F Model Size 335SS-2 1/4”

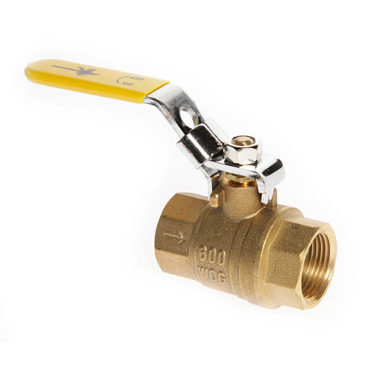

SEL in locked position allows downstream air to exhaust 29” HG vacuum to 125 psi Bronze body Chrome plated ball

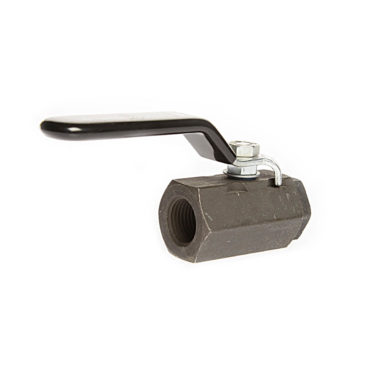

600 psi Chrome plated ball Blow-out proof c/w adjustable packing CGA 3.16 Approved for -40°F to 400° F Model Size
