Manifolds

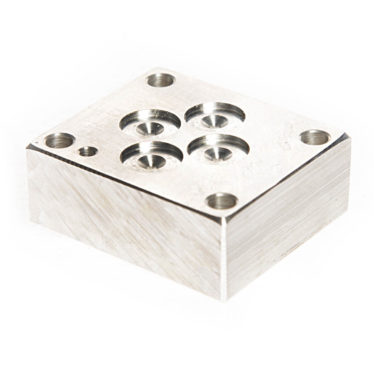

Cover Plates (Daman)

Model Circuit AD03CPP Parallel AD05CPP Parallel AD08CPP Parallel

D03 Manifolds (Daman)

Model Circuit Threads AD03P012 S Parallel SAE AD03P012S/C Parallel-Common Cavity SAE AD03P022S Parallel SAE AD03P022S/C Parallel-Common Cavity SAE AD03S022S Series

D05 Manifolds (Daman)

Model Circuit Threads AD05P013S Parallel SAE AD05P023S Parallel SAE AD05P033S Parallel SAE AD05P043S Parallel SAE AD05P053S Parallel SAE

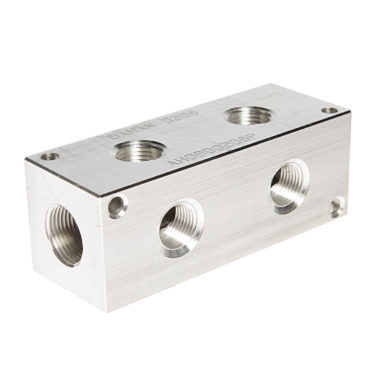

Header Block – 0° Design (Daman)

Header Block is designed to provide outlet ports that are common to one header. The header port is always one

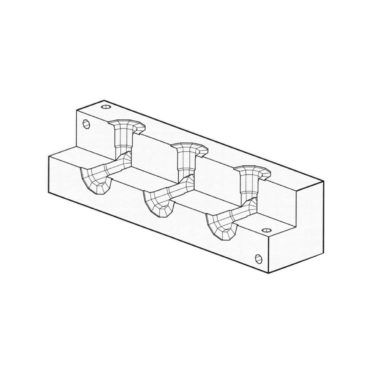

Junction Manifold – 90° (Daman)

Junction Block is designed to provide a place to join piping. Model # of Ports Threads Port Size L W

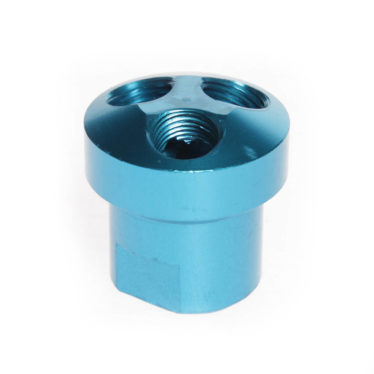

Model # of Outlets Inlet Outlet 3104 3 1/4” 1/4”

Manifolds

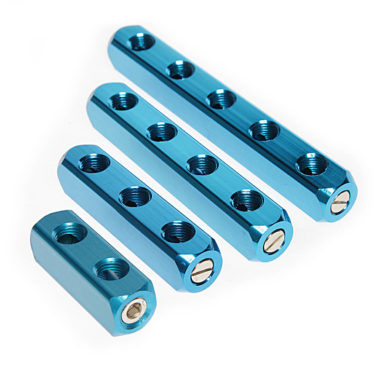

Model # of Outlets Inlet Outlet M-2 2 1/4” 1/4” M-3 3 1/4” 1/4” M-4 4 1/4” 1/4” M-5 5

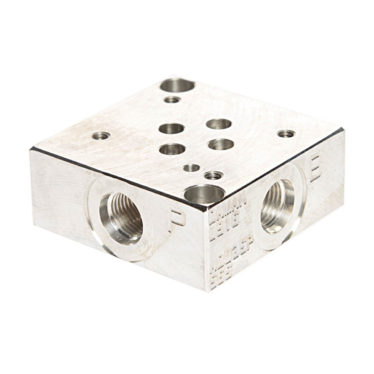

Subplates (Daman)

Model Port Location Threads AD03SPS6P Side NPT AD03SPS6S Side SAE AD03SPS8S Side SAE

Subplates c/w Relief Cavity (Daman)

Model Port Threads AD03SPRVC6S SAE AD03SPRVC8S SAE

Tapping Plates (Daman)

Model Port Threads AD03TPAB4S SAE

Pneumatic Manifolds (2)

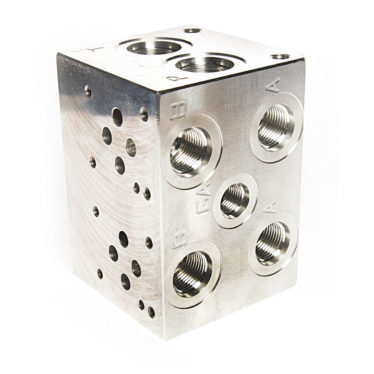

Hydraulic Valve Manifolds (Daman) (8)
